EISCO Premium Wimshurst (Wimshurt) Generator- 15.75″ Tall – Model PH0848C
(1) Wimshurst Generator

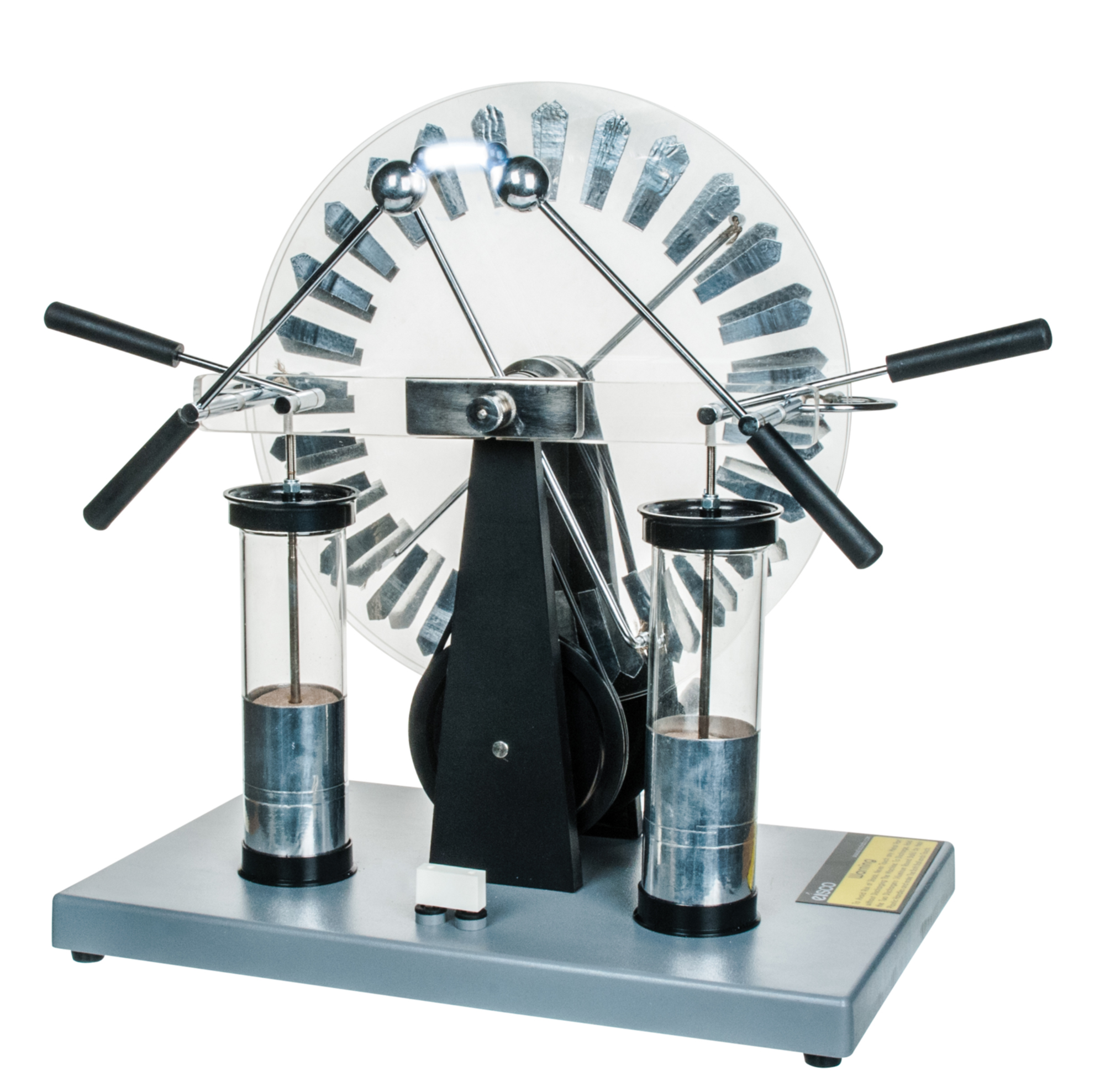

This hand powered Wimshurst machine has two transparent plates that are supported by two rigid uprights and driven by a belt in opposite direction. They are heavy, high resistance plastic, with sectors of aluminum sheet.
The Electrostatic Wimhurst Generator consists of two 12″ dia. circular plastic plates, which are rotated in opposite directions by a drive belt mechanism. Includes two Leyden jar condensers made from Corning glass and aluminum foil. The unit is mounted on a sturdy ABC base. It stands 15″ tall and generates up to 75,000 volts!
Cemented onto each disc are a number of metal foil sectors, which both generate and carry small charges of electricity to be stored in the capacitor. Each sector accumulates the charges derived by influence with the other sectors.
Diagonal neutralizing brushes on the front and back distribute the correct charges to the sectors they revolve. Two additional pairs of brushes collect the accumulated charges and transmit them to the storage capacitor. The brushes are also connected to spark gap electrodes.
As the plastic discs revole, a high voltage spark will jump between the electrodes as they are gradually brought together. Static electricity is stored in the Leyden Jar condenser until discharged.
Two swinging arm dischargers with insulated handles are built-in and the unit is mounted on a wooden base. Instructions included.
Recreate lightning in your own home or classroom – capture your family or student’s imagination instantly!
