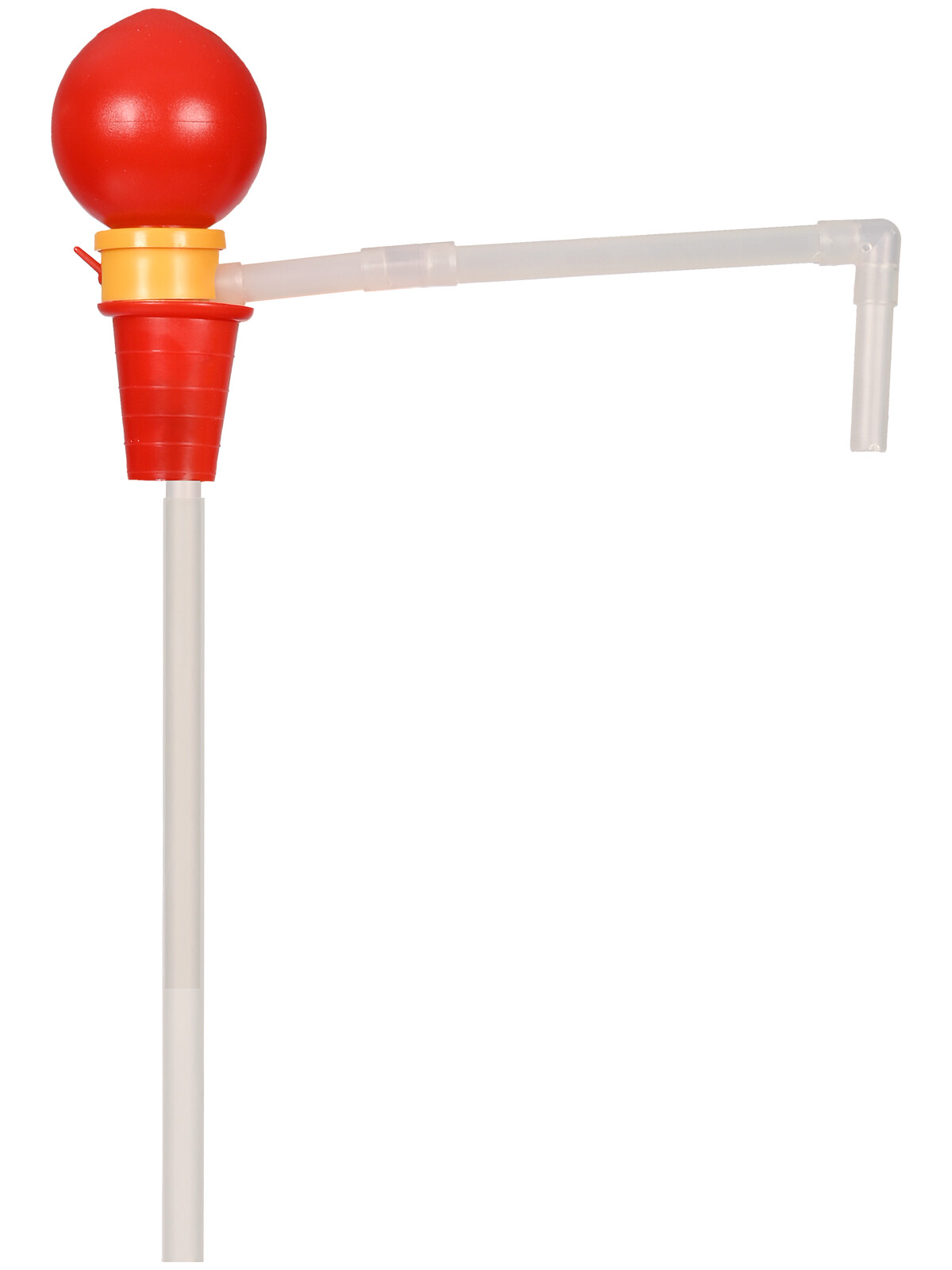

OTAL mini hand pump, PP, tube Ø 10 mm, 4 l/min

OTAL mini hand pump, PP, tube Ø 10 mm, 4 l/min, Part number 5005-1000-BK, Buy now form Bürkle at Dawnscientific

The OTAL® mini hand pump PP is ideal for smaller containers. With a smaller plug (20-36 mm (0.79-1.42 in.)) and an immersion depth of 45 cm (17.72 in.), it is ideal for containers up to 10 liters (2.64 gal.). Resistant to weak acids and alkalis. Economical alternative for reliable filling.

OTAL^® hand and foot pumps are compact universal pumps for filling and transferring from containers and drums. Established in the market for more than 70 years, the pumps are known for their easy handling in daily use.

The drum and container pumps operate on the air-over-pressure principle. Only the delivery tubes come into contact with the liquid, which ensures a wide range of chemical resistance. Depending on the model, the tubes are made of PE, PP, PVDF or stainless steel. In this way, a wide variety of liquids can be filled quickly and easily.

To ensure proper operation, the pumps must be mounted in an airtight container. Repeated actuation of the pump ball creates an overpressure in the container, which drives the liquid out of the container through the delivery tube. The liquid flow is pulsation-free and steady and can be stopped immediately by the air release valve without any after-running.

OTAL^® hand and foot pumps are extremely robust, durable and of outstanding quality. They can be used to transfer and fill acids, alkalis and aqueous solutions from larger containers to smaller ones easily and cost-effectively.

The universal plug allows the pump to be used with all common containers without the need for a threaded connection.

The telescopic dip tube is height adjustable and can be shortened if necessary. This ensures optimum residual discharge so that filling can be carried out from 220 liter drums as well as from smaller canisters.

OTAL^® hand and foot pumps are a practical and reliable solution for filling and transferring liquids. Their high quality, universal applicability and ease of use make them the perfect choice for everyday use.

Thanks to their compact design and universal applicability, the pumps are a practical solution for draining and transferring small quantities of water, oils, acids, alkalis, and other liquids with a maximum viscosity of approx. 500 mPas.

The OTAL^® mini hand pump PP is ideal for use in smaller containers. With its smaller plug, it is designed for container openings from 20 to 36 mm (0.79 to 1.42 in.). The pump has a maximum immersion depth of 45 cm (17.72 in.) and is therefore ideal for use in small containers up to approx. 10 liters (2.64 gal.).

The delivery tubes of the hand pump are made of PP, the universal plug is made of soft PVC. The OTAL^® Mini hand pump is resistant to weak acids and alkalis.

The pump outlet can be turned up to prevent dripping.

The OTAL^® mini is an economical alternative to comparable models and offers reliable filling from small containers.

Features

• Compact universal pump with easy operation
• Universal plug allows use with all common containers
• Ideal for containers up to approx. 10 l (2.64 gal.)

Applications

The mini hand pump is particularly suitable for reliable filling from small containers such as bottles, cans, jars or other small containers. up to approx. 10 liters (2.64 gal.).

It is used in various industries, e.g. in the food industry, the chemical industry, the pharmaceutical industry, the cosmetics industry, the cleaning industry and in areas such as laboratories or workshops.

• If necessary, adjust the universal plug to fit the opening diameter of the container.
• Fully extend the telescopic tube.
• Insert the telescopic tube and universal plug into the container and push them together to form a seal.
• Close the stop valve.
• Position the discharge elbow over the filling container.
• Actuate the pump ball and build up pressure. Liquid will now flow.
• To stop filling, open the stop valve and release the excess pressure.
• After filling, turn the discharge elbow with the opening facing up to prevent liquid from dripping.
